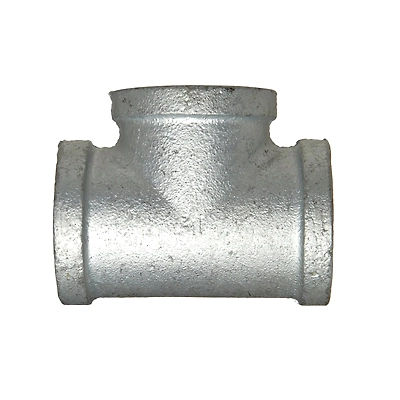

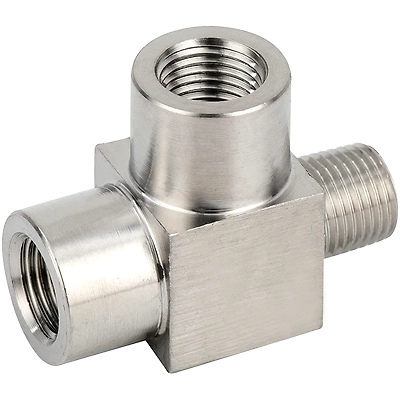

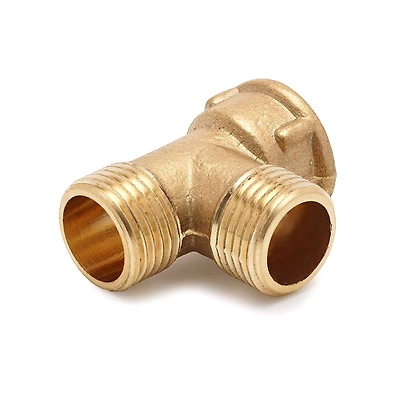

Tee Pipe Fittings
0.81
-
Product is not available
Brand:
Country Of Origin : India
Manufacturing Standards:
- We adhere to stringent quality and manufacturing standards to ensure the reliability and performance of our pipe fittings.
- ASTM A234: Specification for pipe fittings of wrought carbon steel and alloy steel for moderate and high-temperature service.
- ASTM A403: Standard specification for wrought austenitic stainless steel piping fittings.
- ASTM A420: Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Low-Temperature Service.
- ANSI/ASME B16.9: Standard for factory-made wrought butt-weld fittings.
- MSS SP-43: Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications.
- BS EN 10253: European standard for butt-welding pipe fittings.
- IS 1239: Indian Standard for Mild Steel Pipe Fittings.
Applications of Tee Pipe Fittings:
Pipeline engineering
Oil and gas refineries
Petrochemical plants
Chemical processing plants
Marine Industry
Waste water Treatment Plants
Water Supply Systems
Fire Protection Systems
Power industry
Aerospace Industry
Food processing industry and many more.
Our Production Range-
Outer diameter: Seamless pipe fittings (1/2??24?), ERW / Welded / Fabricated Elbow (1/2??48?)
Wall Thickness: 3mm � 40mm / SCH3, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Special Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Material Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel
Buttweld Elbow Manufacturing Standards
Material Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel
ASME: ANSI B16.9, ANSI B16.25, ANSI B16.28, ASTM A403, ASME SA403, MSS-SP-43
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011.
EN: EN10253-1, EN10253-2
Stainless Steel Elbow: ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Elbow: ASTM A 234 WPB, WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Low Temperature Carbon Steel Elbow: ASTM A420 WPL3, A420 WPL6
Alloy Steel Elbow: ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Steel Elbow: ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462
Nickel Alloy Elbow: ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS n10276 ( HASTELLOY C 276 )
Forged Elbow Specifications & Forged Elbow Material Grades
Pressure Class: 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Dimension Specifications: ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Sizes: 1/8?- 4? (DN6~DN100)
Manufacturing Standards: ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Stainless Steel: ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L The material for forged stainless Elbow conforms to ASME A182 The dimensions for forged stainless steel Elbow conform to ASME B16.11
Carbon Steel: ASTM A105, A350 LF2, A106 Gr.B, A234 WPB The material for forged carbon steel Elbow conforms to the requirements of ASTM/ASME A105/SA105 The dimensions for forged carbon steel Elbow conform to ASME B16.11.
